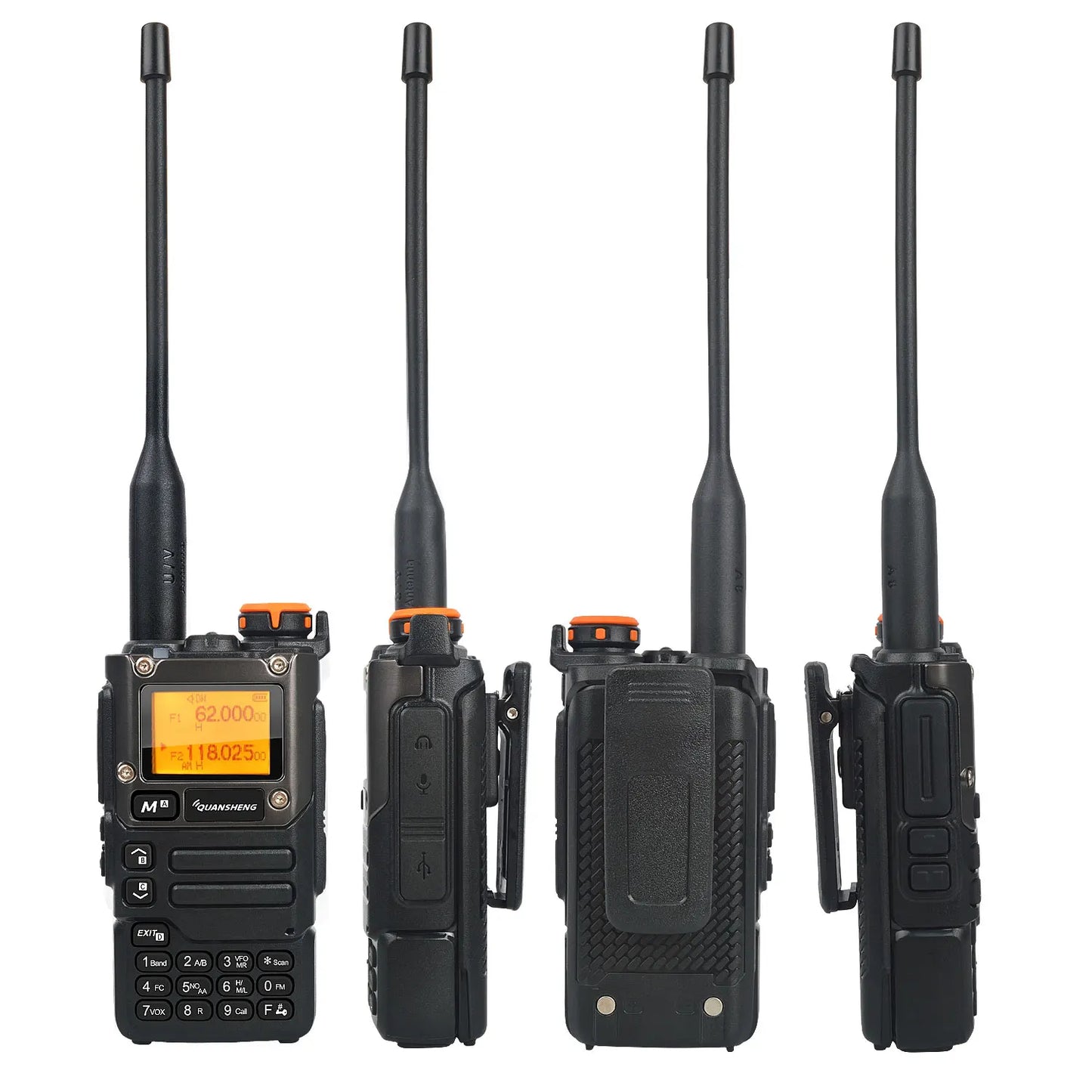

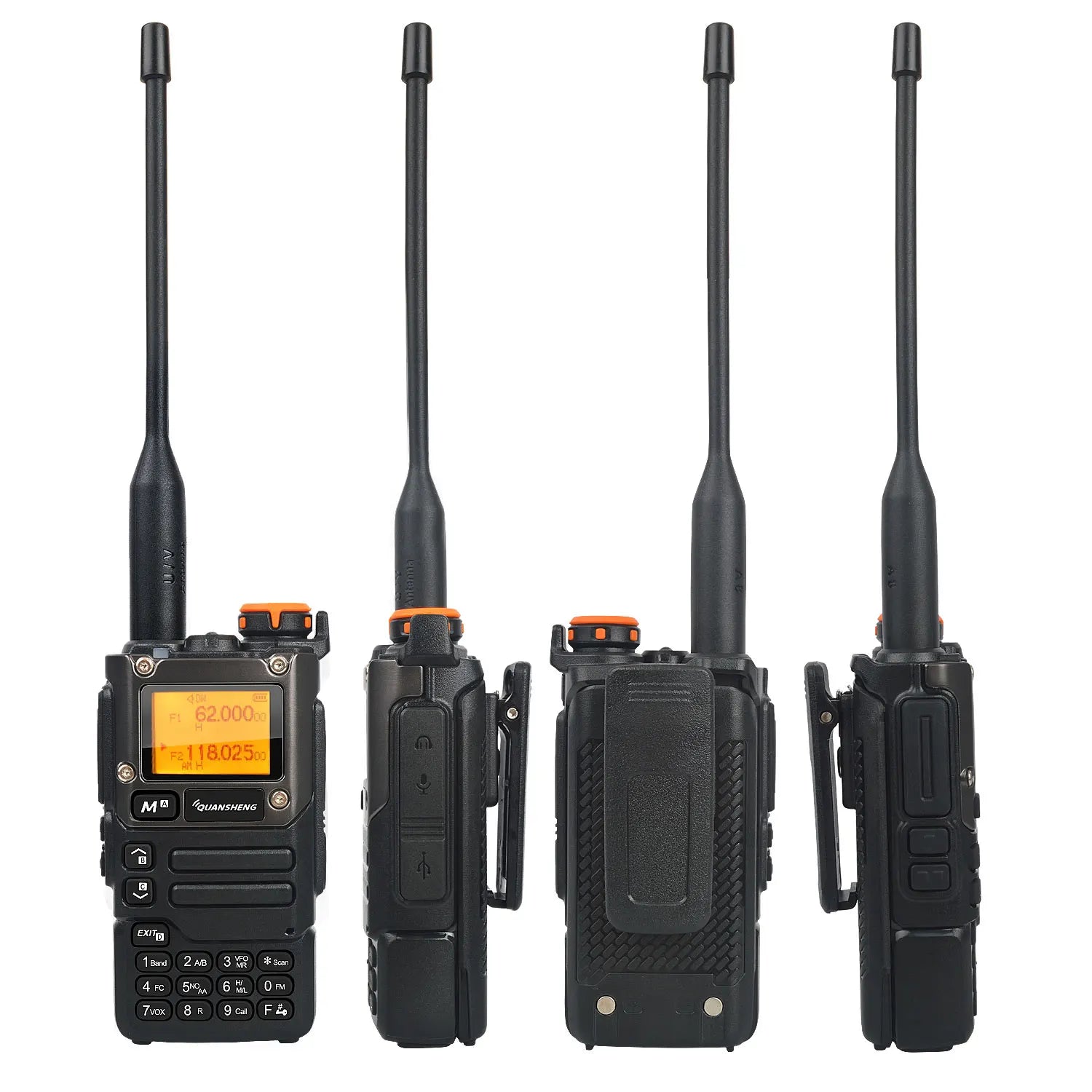

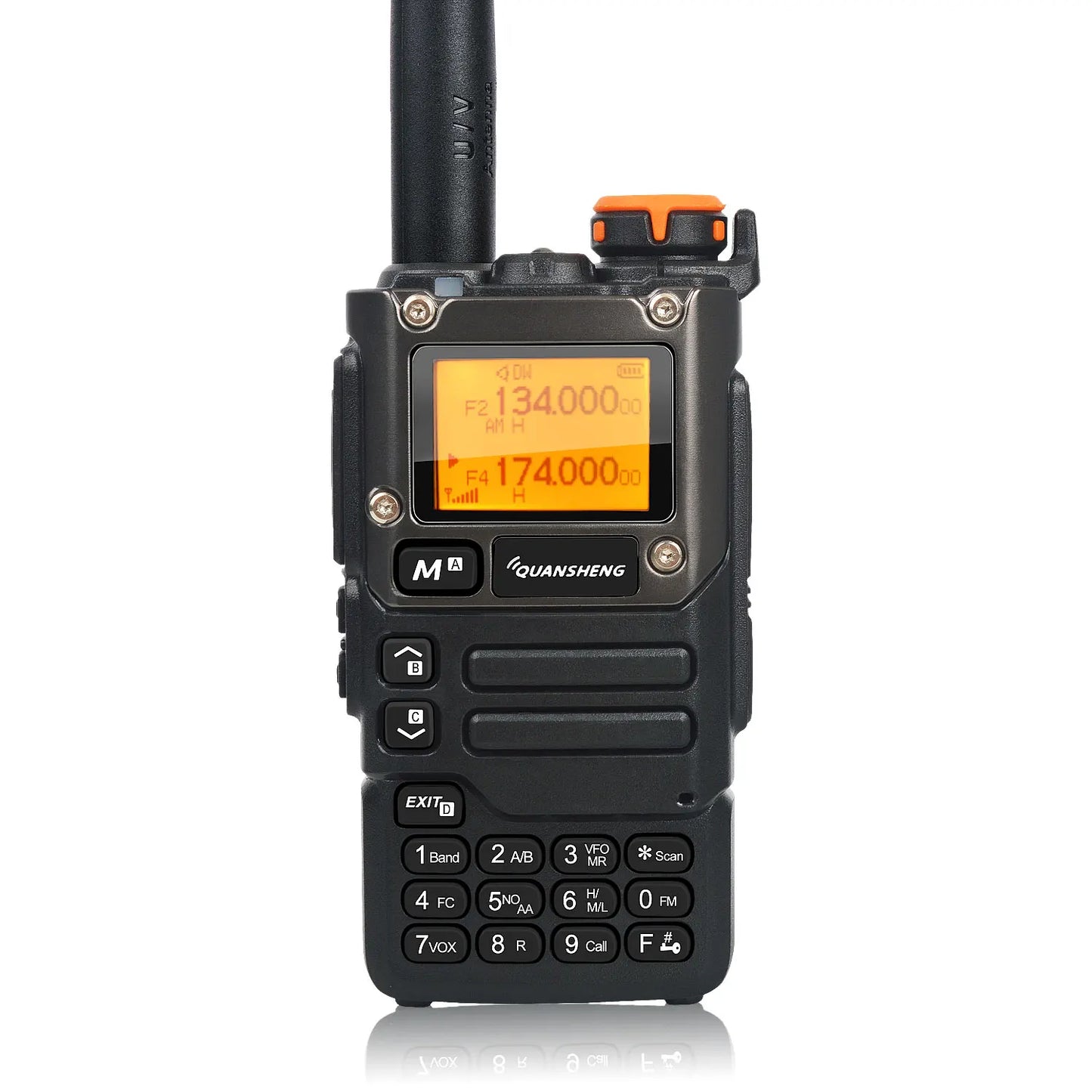

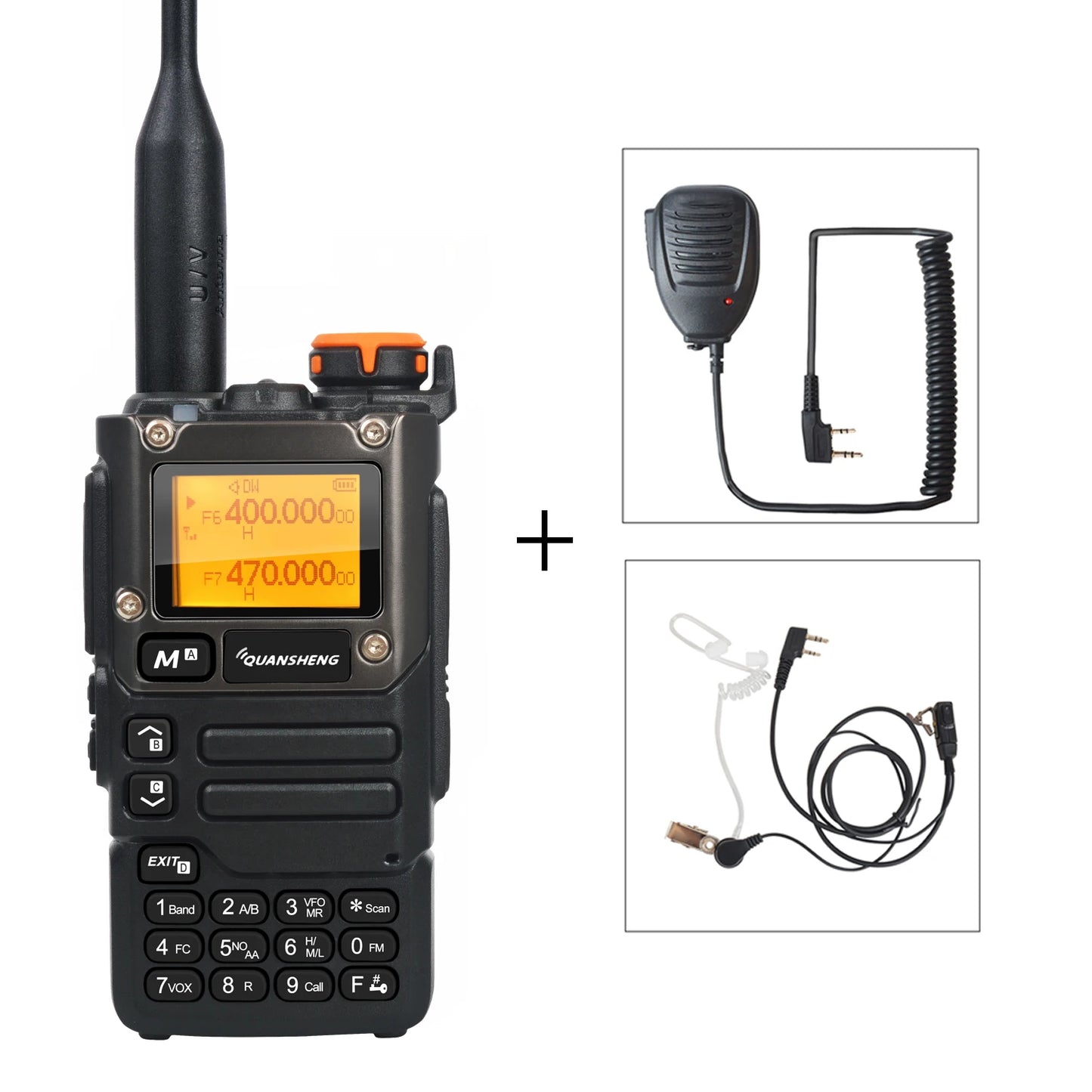

Walkie Talkie Quansheng UV-K5(8) 50-600MHz Air Band Rx Multi-Band 136-600MHz Tx DTMF Scrambler Frequency Scan Copy Vox FM Radio
Walkie Talkie Quansheng UV-K5(8) 50-600MHz Air Band Rx Multi-Band 136-600MHz Tx DTMF Scrambler Frequency Scan Copy Vox FM Radio
Teslim alım stok durumu yüklenemedi
SPECIFICATIONS
Battery Capacity(mAh): 1600
Brand Name: quansheng

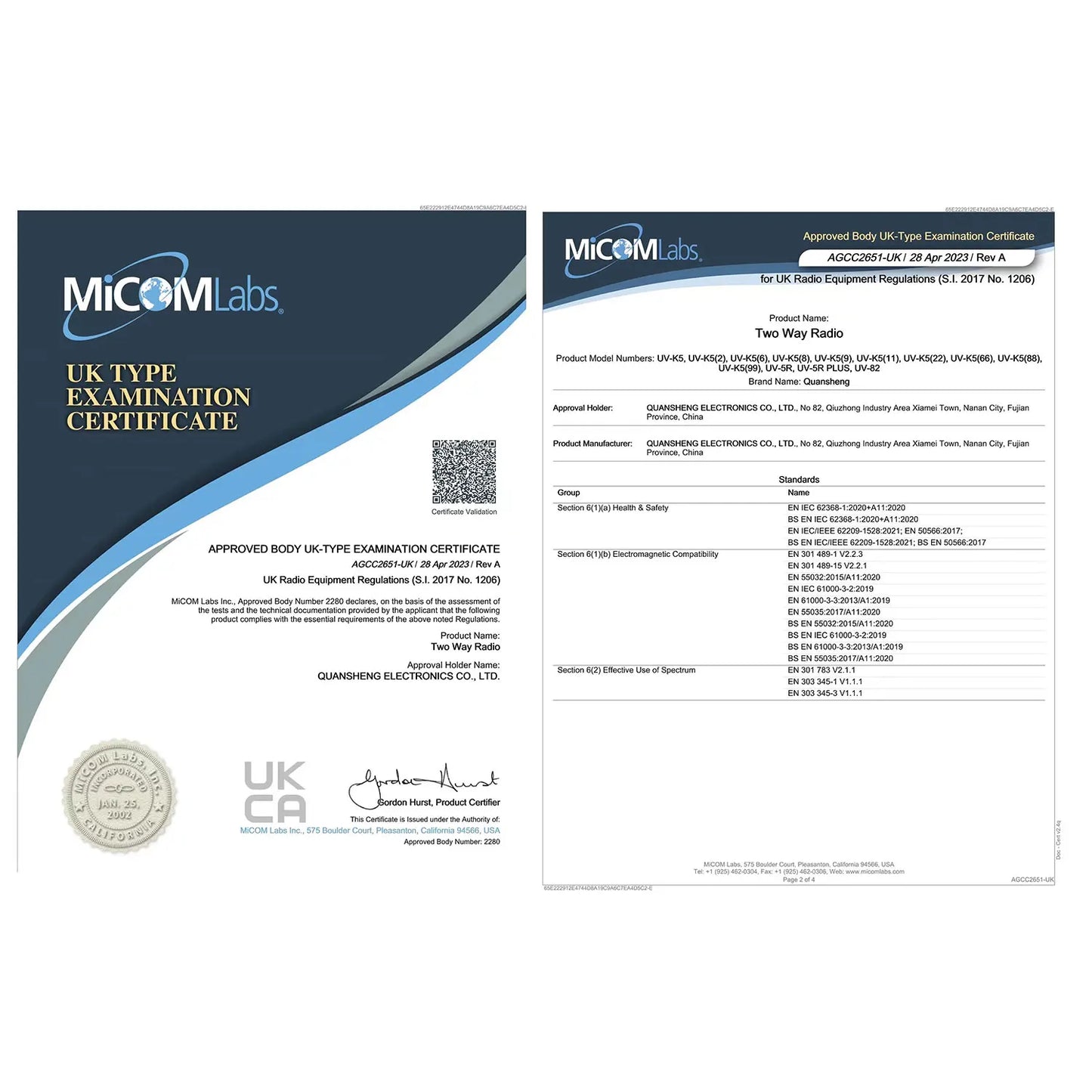

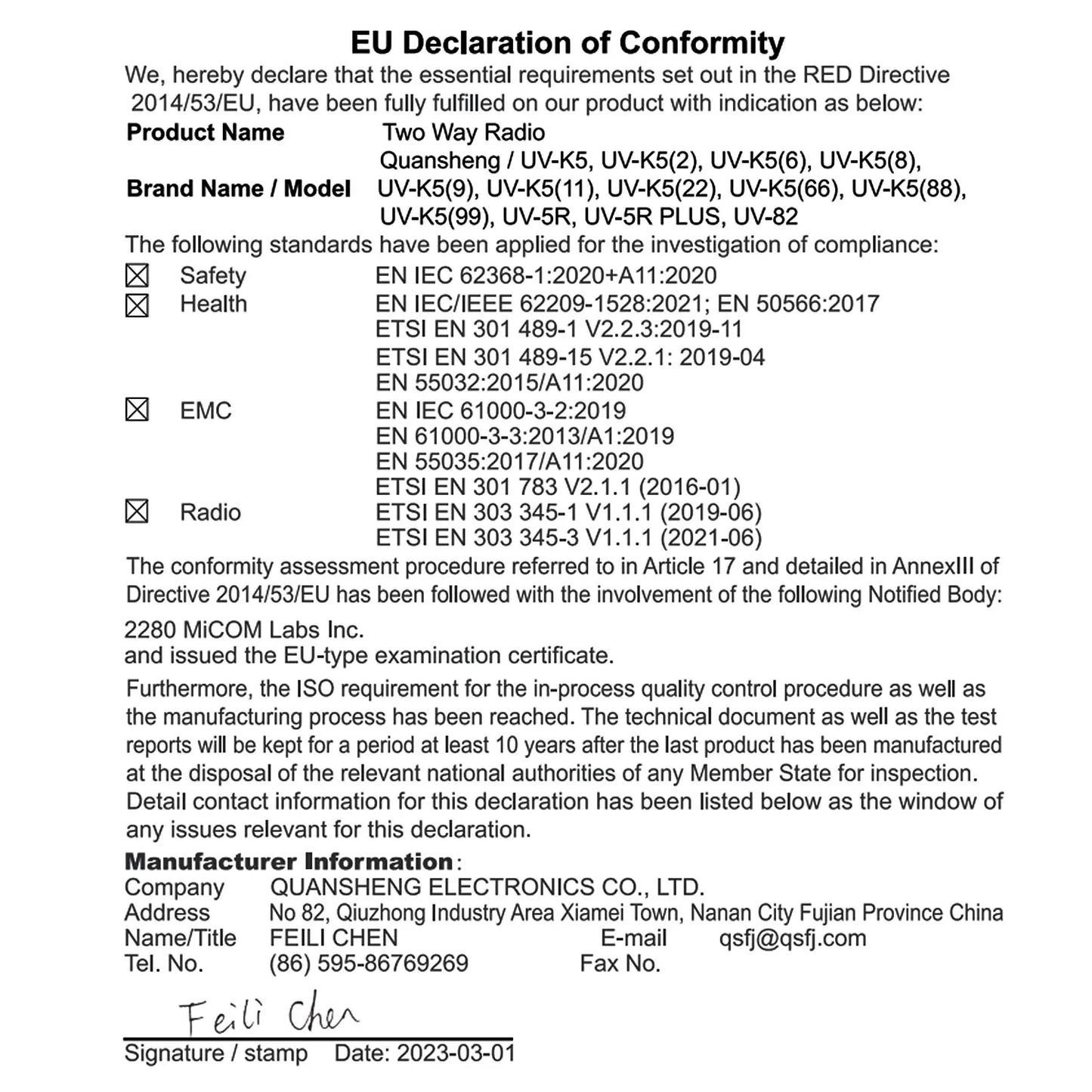

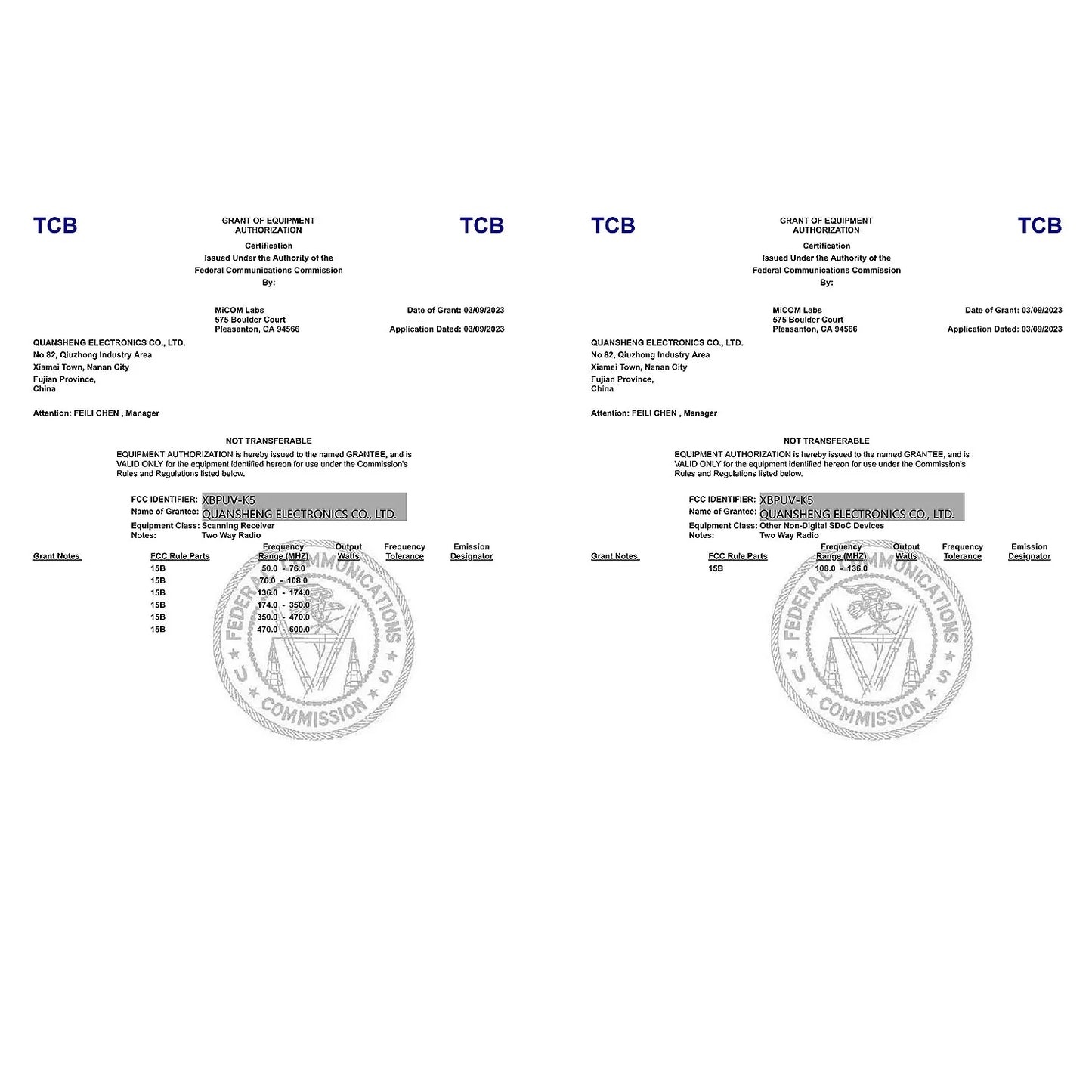

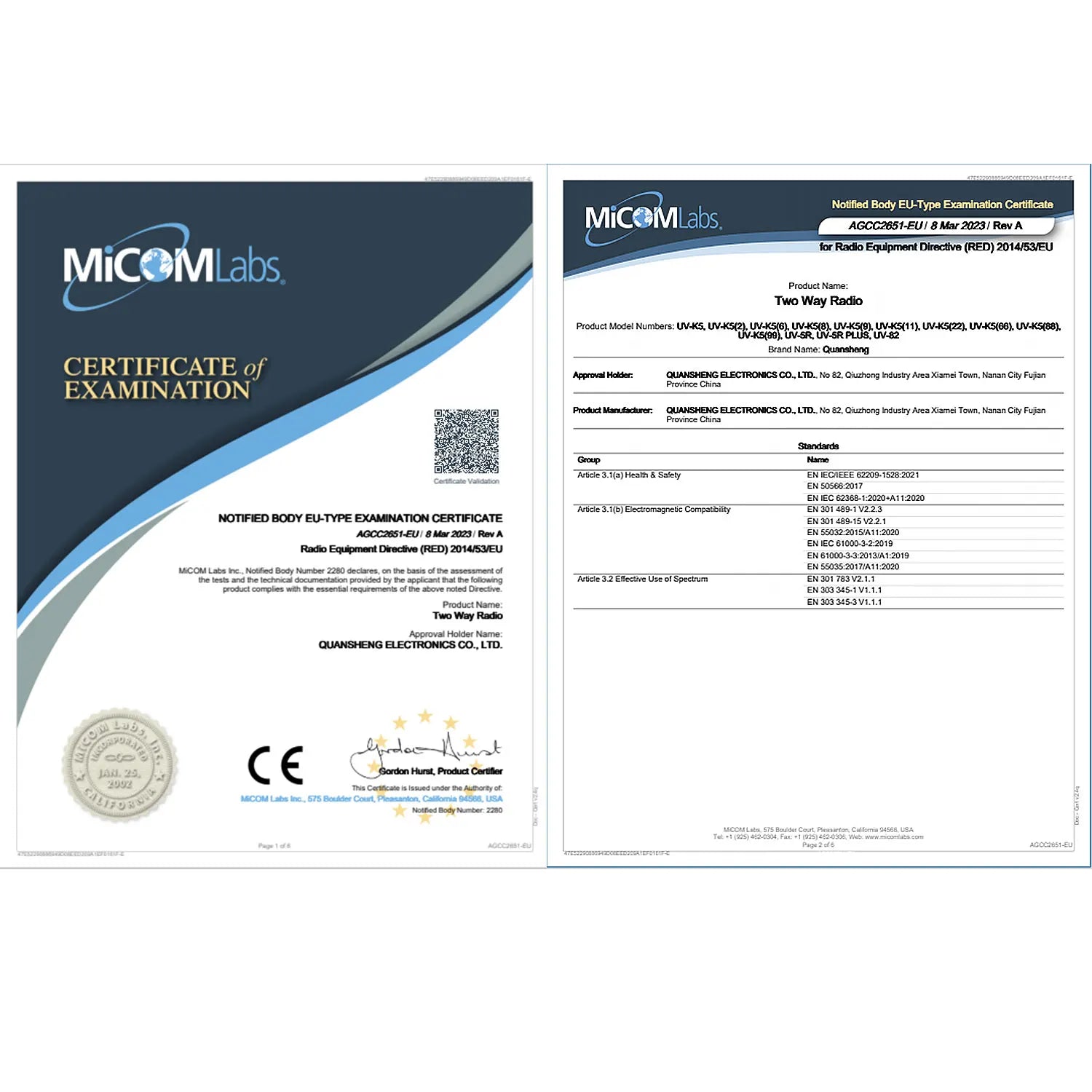

Certification: CE,FCC,KC

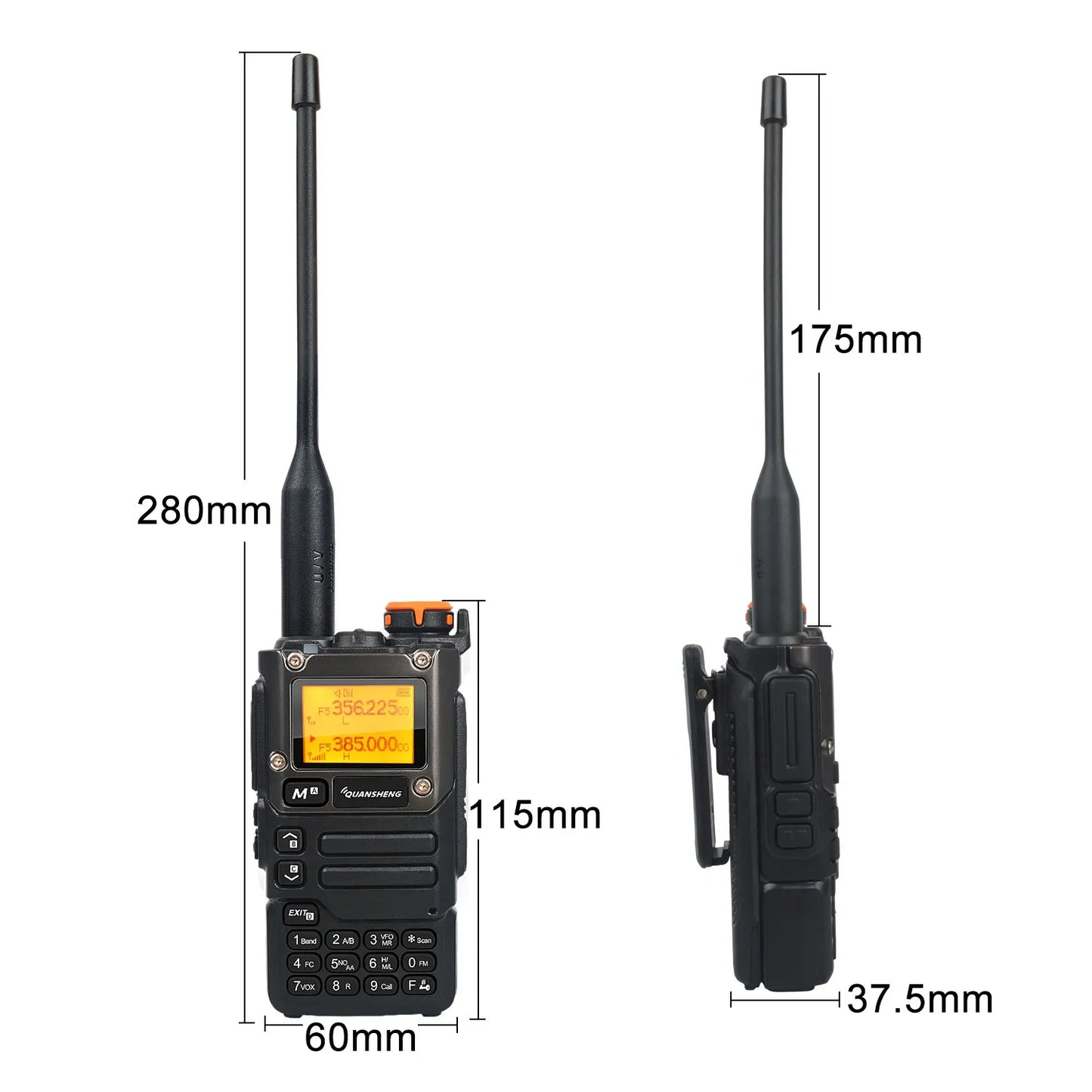

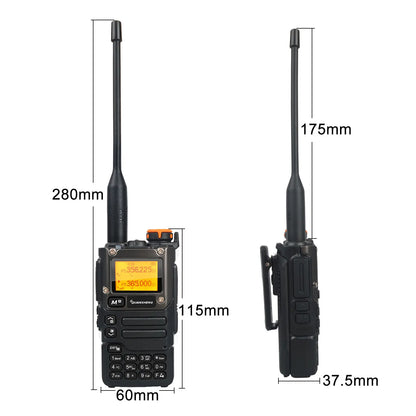

Dimensions: 115*60*37.5mm(Antenna not included)
Frequency Range: 50-600MHz RX,136-600MHz TX
Is_Display: Yes
Material: Plastic
Maximum Range: 1.5km-3km
Model Number: UV-K5(8)
Origin: Mainland China
Output Power(w): 3w-5w
Storage Channel: 200
Walkie Talkie Type: Portable
Waterproof / Water-Resistant: No
Walkie Talkie Quansheng UV-K5(8) 50-600MHz Air Band Rx Multi-Band 136-600MHz Tx DTMF Scrambler Frequency Scan Copy Vox FM Radio

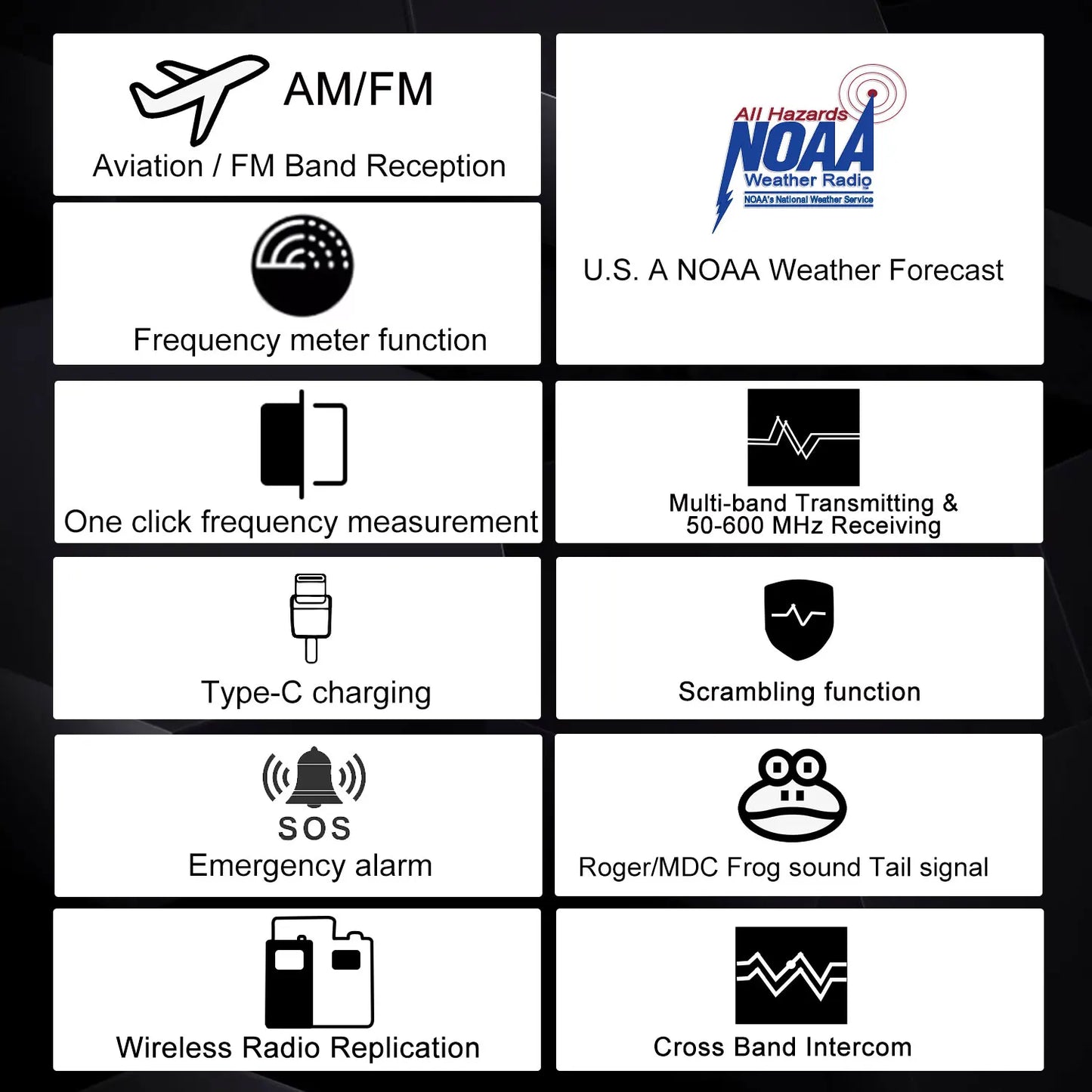

Features:
-10 Channels America NOAA weather forecast
-VHF UHF dual band Transmit and Receiver, 50-600MHz full band Receiving

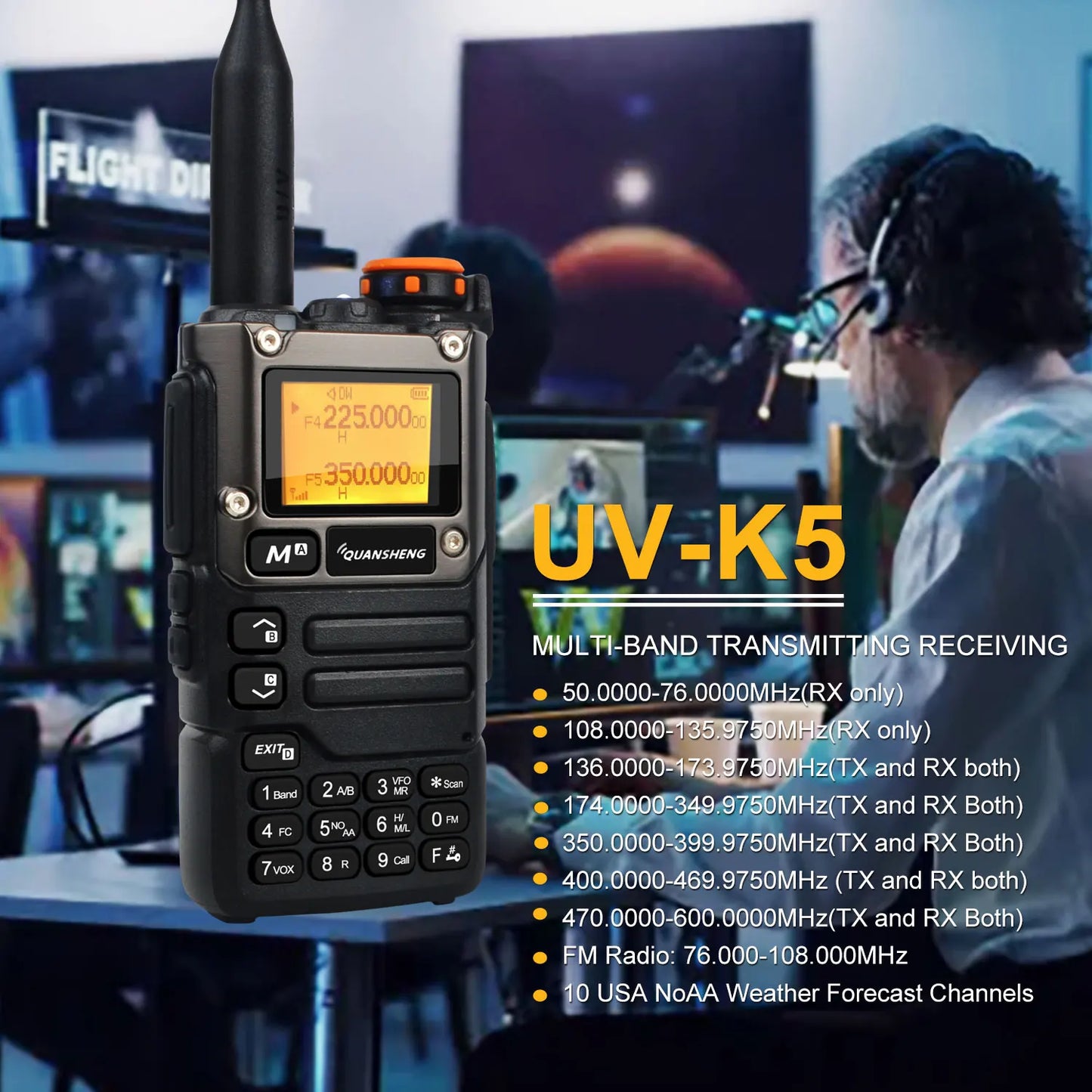

- Frequency Range(Multi-Band Transmitting & 50-600MHz Receicing):
F1:50.0000-76.0000MHz(RX only)
F2:108-.0000-135.9750MHz(RX only)
F3:136.0000-173.9750MHz(TX and RX both)
F4:174.0000-349.9750MHz(RX only)
F5:350.0000-399.9750MHz(RX only)
F6: 400.0000-469.9750MHz (TX and RX both)
F7:470.0000-600.0000MHz(RX only)

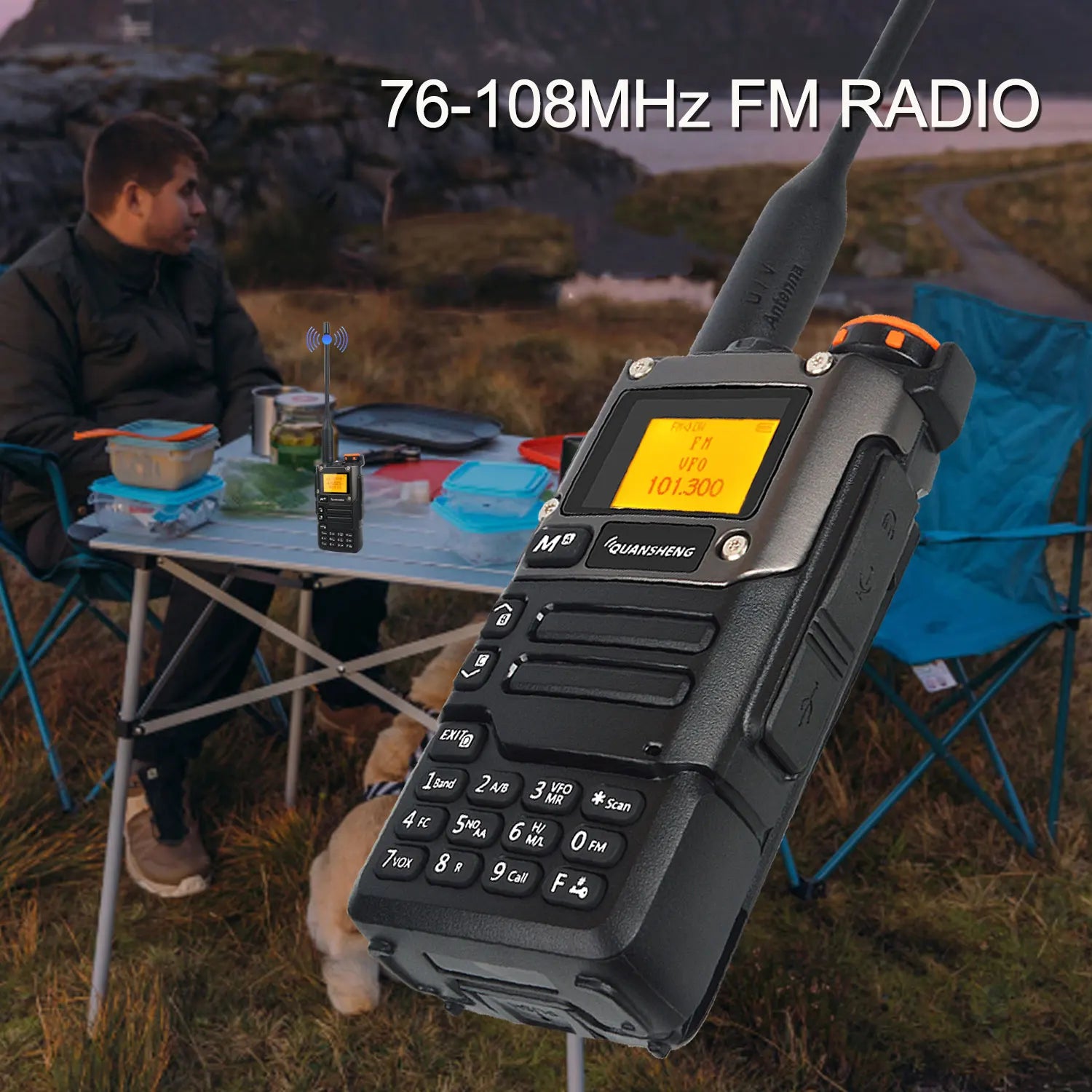

FM Radio: 76.000-108.000MHz

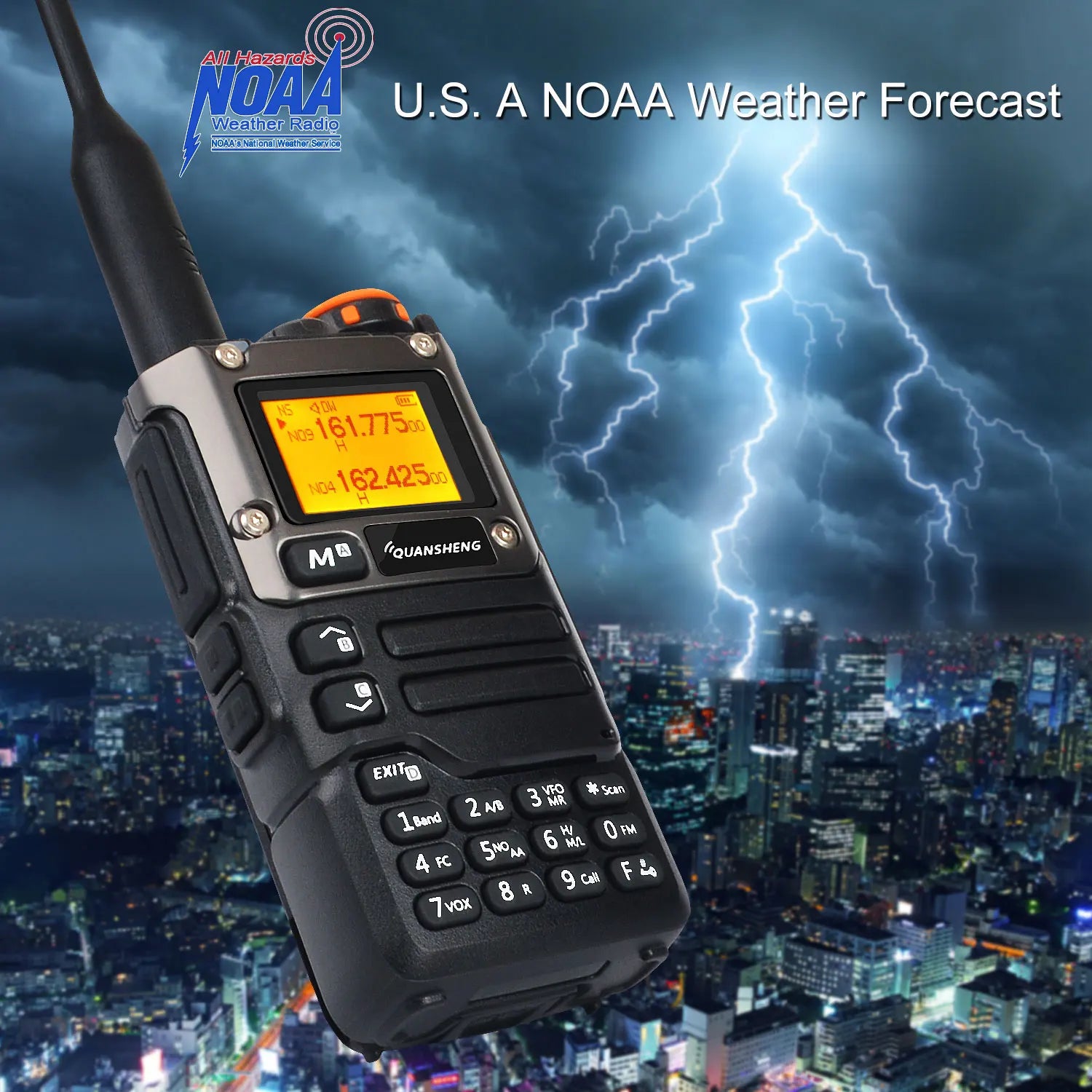

10 USA NoAA Weather Forecast Channels

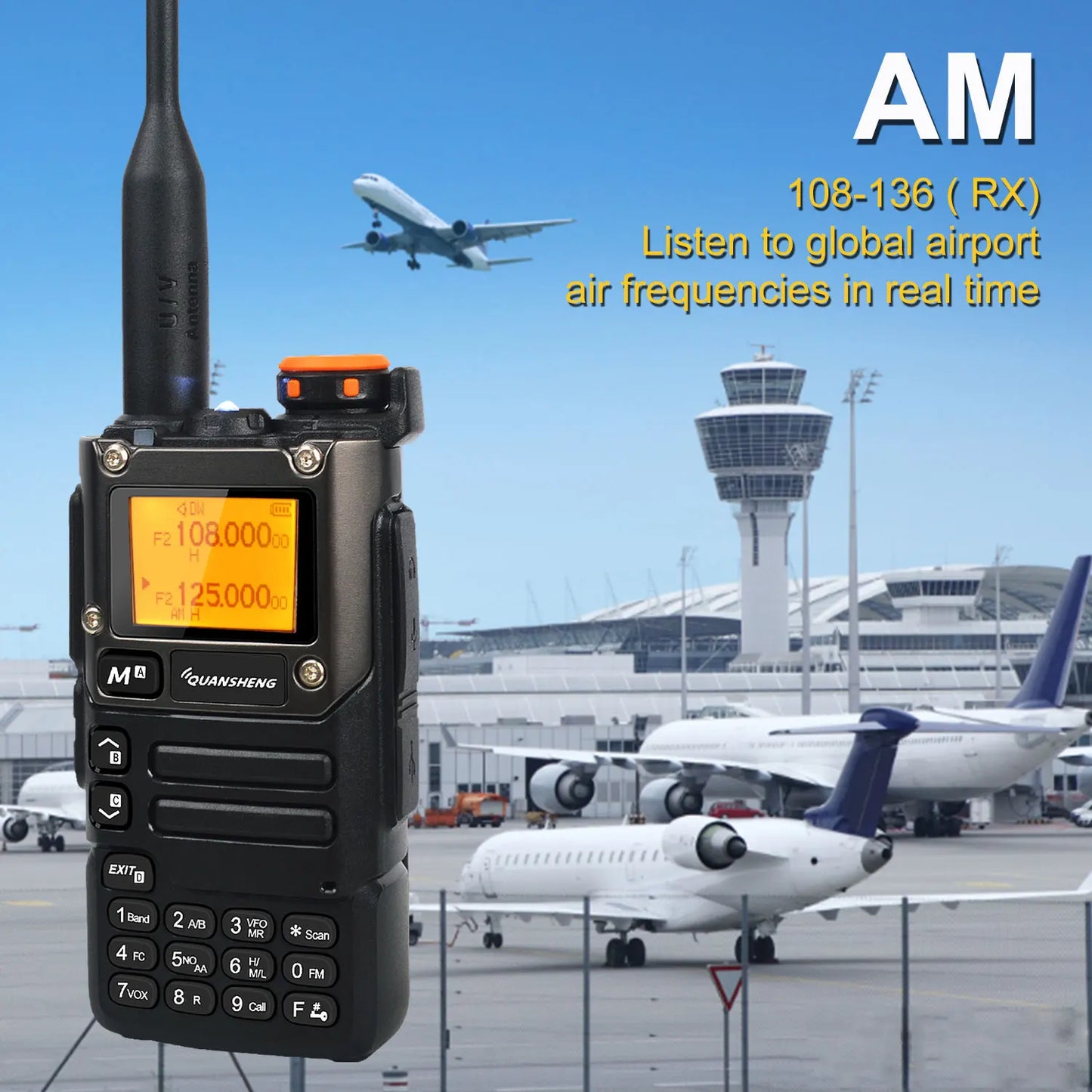

-Air Band Receiving
-Cross-band Intercom

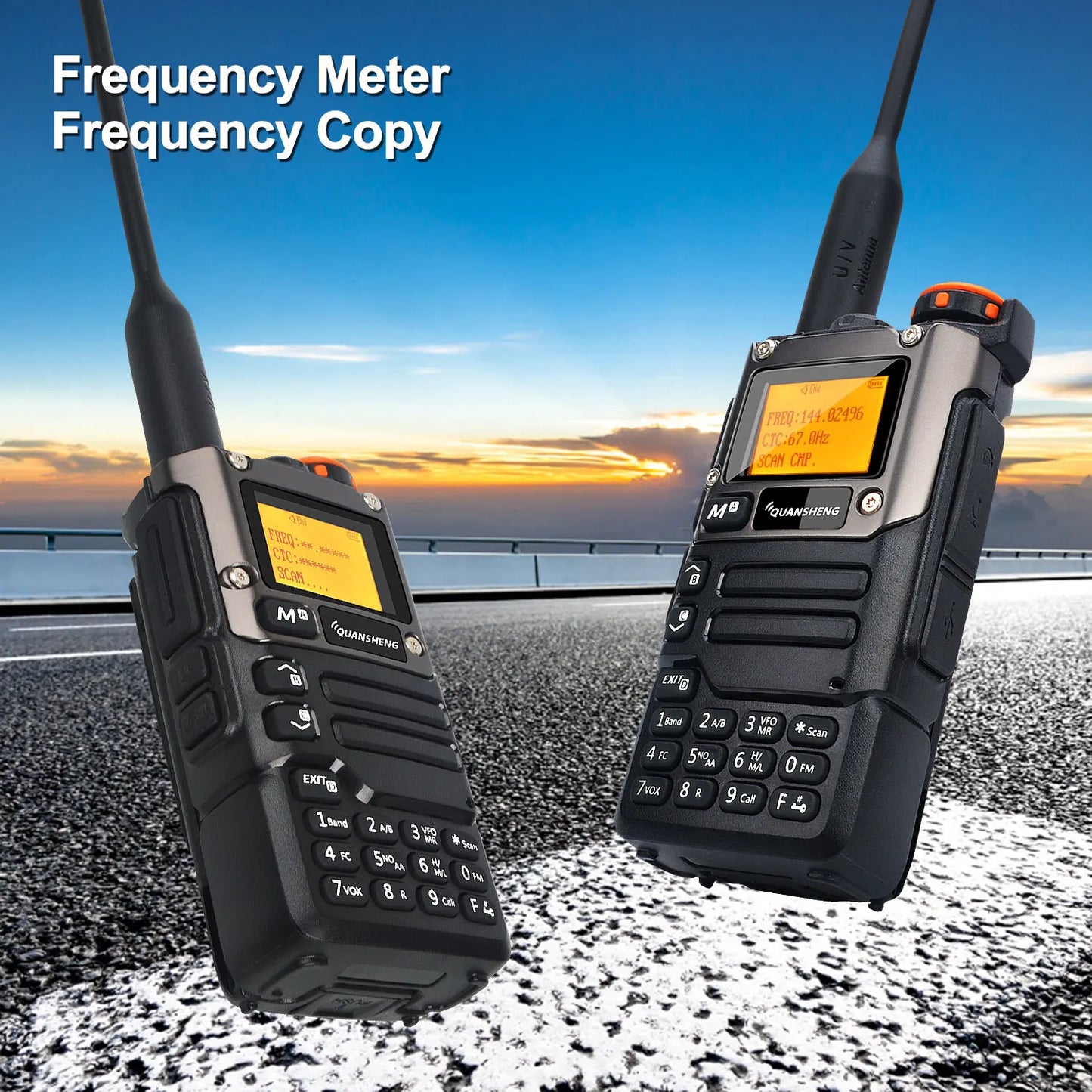

-Wireless Frequency scan and copy ( Worked as Frequency Meter)from other radios

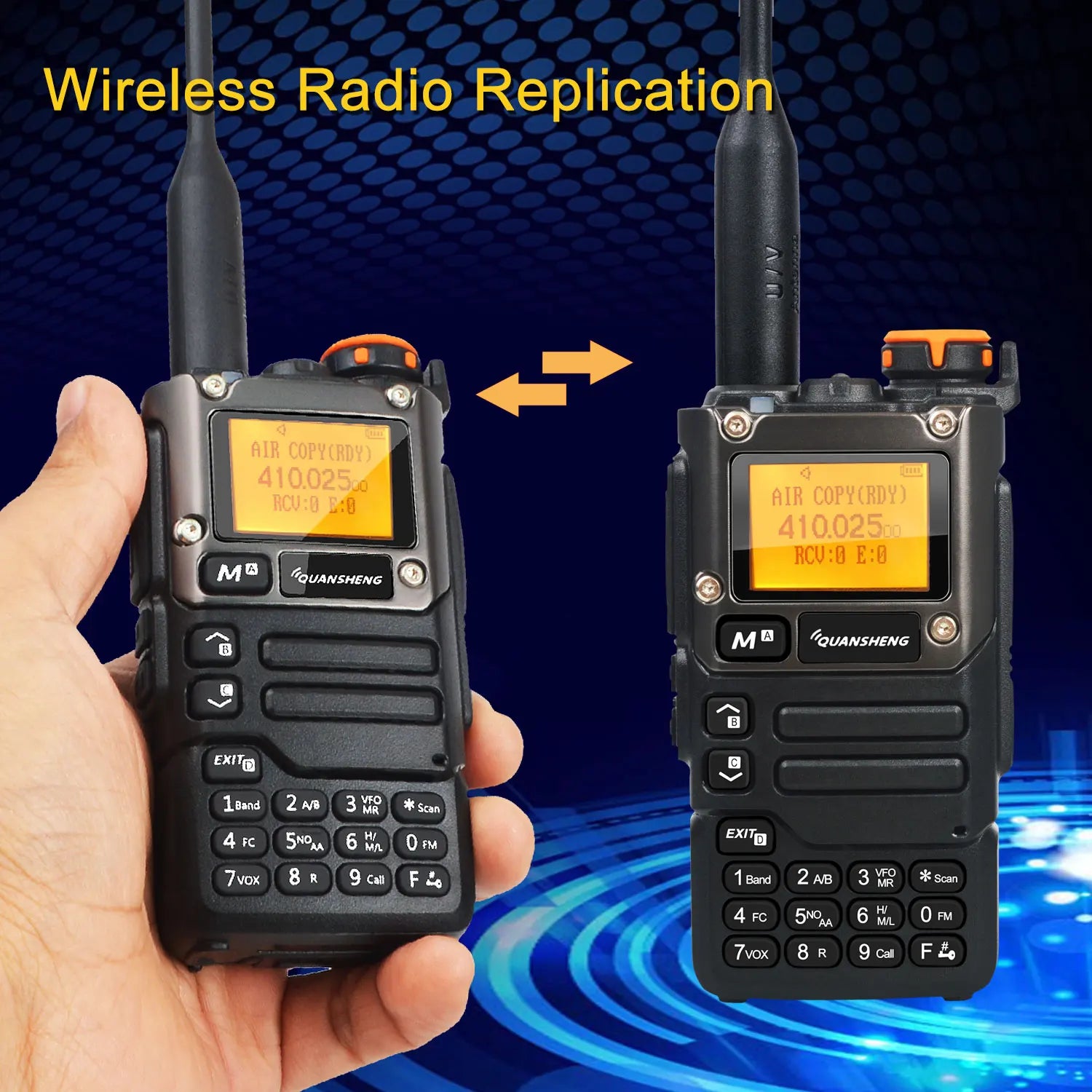

-Wireless Radio Replication from othe Quansheng K5 Series Radios
-Auto/Manual Emergency Alert
-FM radio
-10-Group Scrambler
-Power-on Password Protection
-Frequency/DCS/CTCSS Scan
-Digital Signal CTCC/DCS

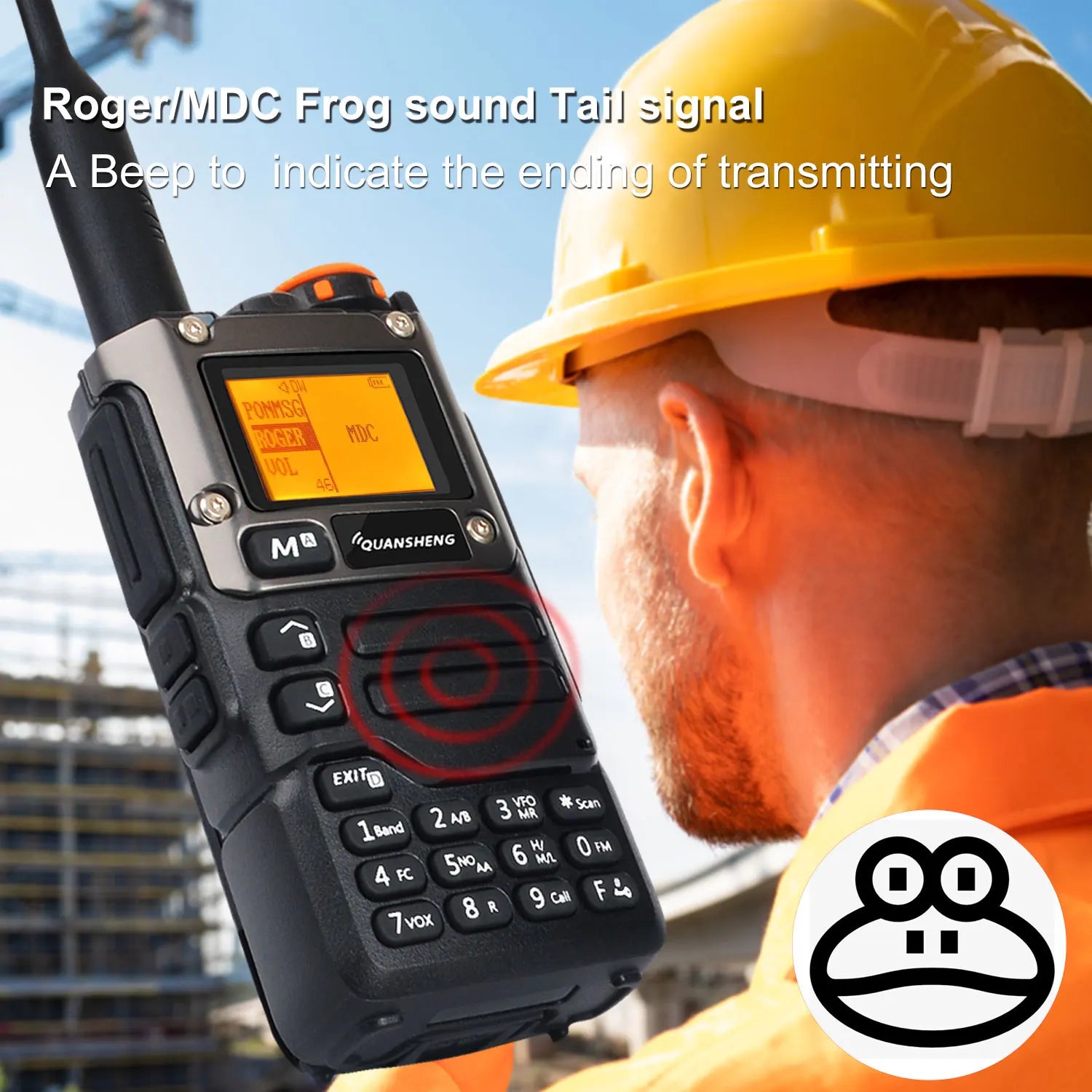

-Roger/ MDC Frog Beep transmitting End Tail
-1600 mAh Rechargeable Li-ion Battery Pack

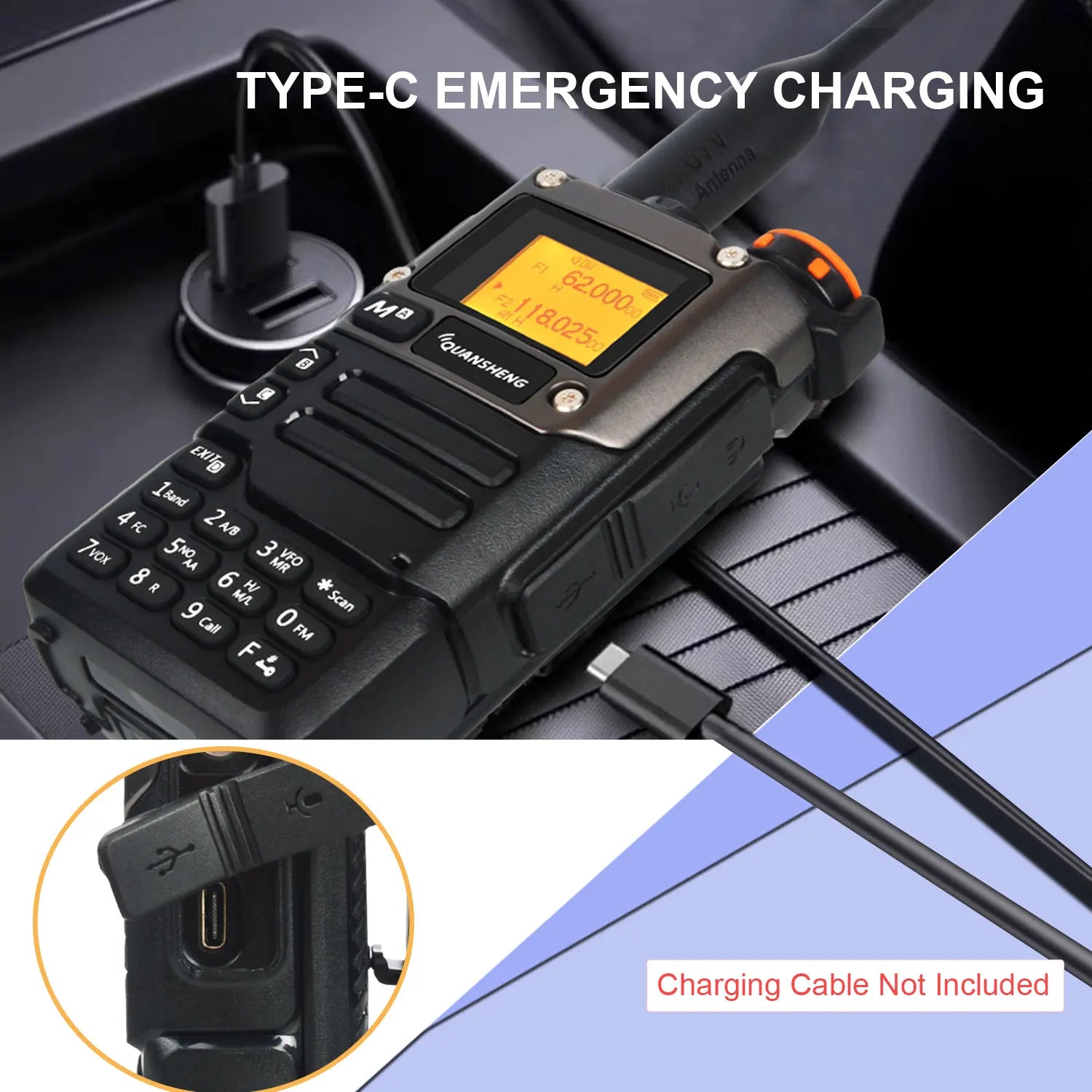

-Type C and Desktop Cradle Charging
-VOX (Voice operated Transmission)
-Dual BAND STANDBY
-DTMF AND 1750 Tone
-BUTTON F+ Button 3 to switch Channel mode to Frequency Mode
-200 Memory Channels

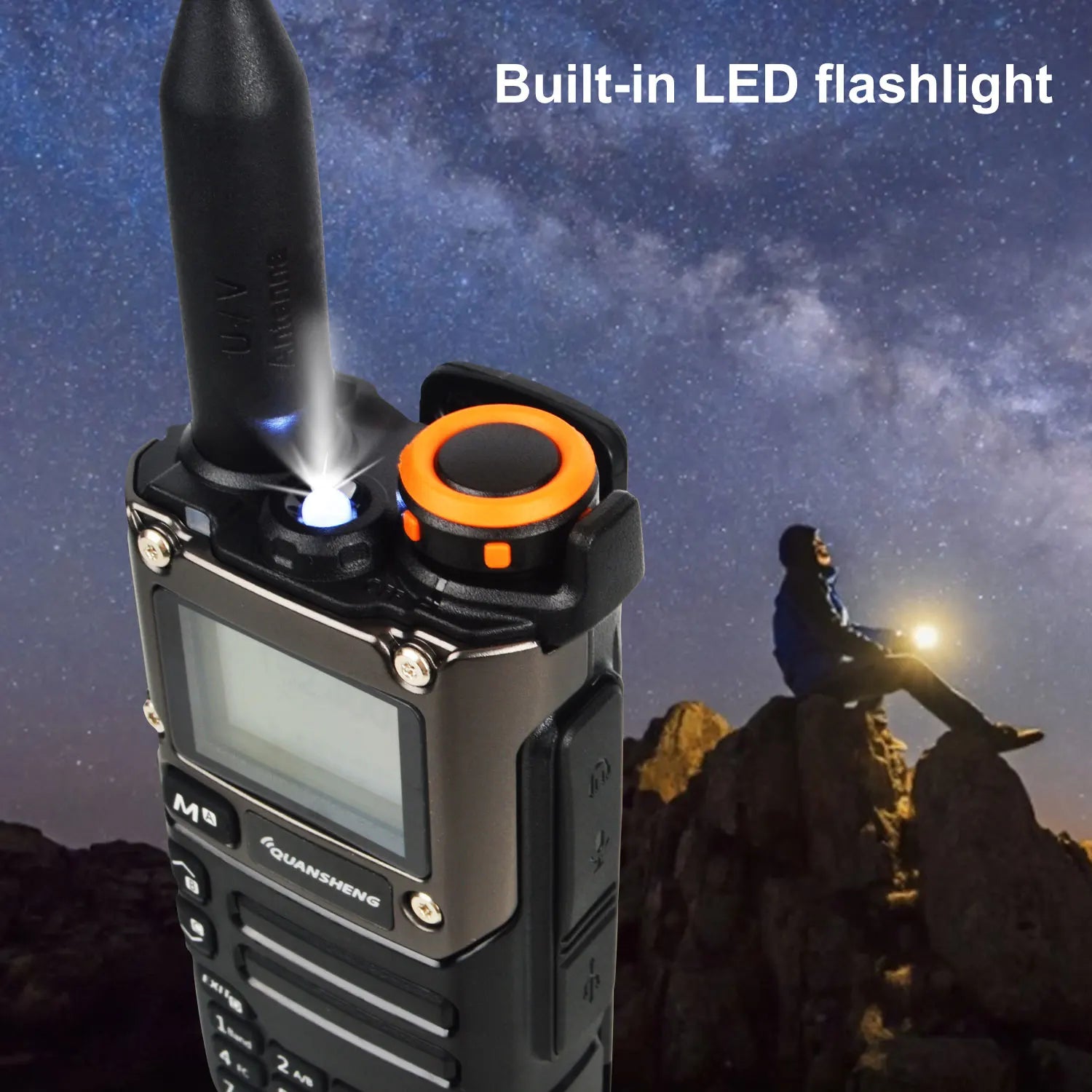

-Built-in high light Torch
Specifications:
General | ||
Memory Channel Number: |
200 |
|
Channel Number for FM Commercial Radio: |
20 |
|
NOAA Memory Channel Number: |
10 |
|
Frequency Stability : |
±1ppm |
|
Modulation : |
FM:16KΦF3E@25KHz/11KΦF3E@12.5KHz |
|
Dimension: |
115mm*60mm*37.5mm |
|
Weight: |
243g |
|
Working Temperature |
-20°c~ +60°c |
|
Antenna Impedance |
50 ohm |
|
Receiving Parts | ||
Referenced Sensitivity |
FM(12dB SINAD) |
F1 (50-76MHz): -121dBm F2(108-135.9975MHz):-121dBm F3(136-173.997MHz):-123dBm F4(174-349.9975MHz):-123dBm F5(350-399.9975MHz):-123dBm F6(400-469.9975MHz):-123dBm F7(470-599.9975MHz):-121dBm |
WFM(20dB SINAD) |
WFM(76-108MHz):-110dBm |
|
AM(10dB S/N) |
F2(108-135.9975MHz):-113dBm |
|
Audio Rated: |
≥0.5W |
|
Audio Distortion |
≤10% |
|
Transmission Parts | ||
Frequency Range: |
136-173.9975MHz |
400-469.9975MHz |
Output Power |
5W |
4W |
Working Current |
≤1.5A |
≤1.5A |
Max.Frequency Deviation |
≤5KHz(25KHz),≤2.5KHz(12.5KHz) |
≤5KHz(25KHz),≤2.5KHz(12.5KHz) |
Modulation Distortion |
≤5% |
≤5% |
Spurious Radiation |
≤7.5uW |
≤7.5uW |
Adjacent Ch. power |
70dB(25KHz),60dB(12.5KHz) |
70dB(25KHz),60dB(12.5KHz) |
Inter-modulation |
40dB |
40dB |
Note: Specifications are subject to change without notice due to technical improvement.

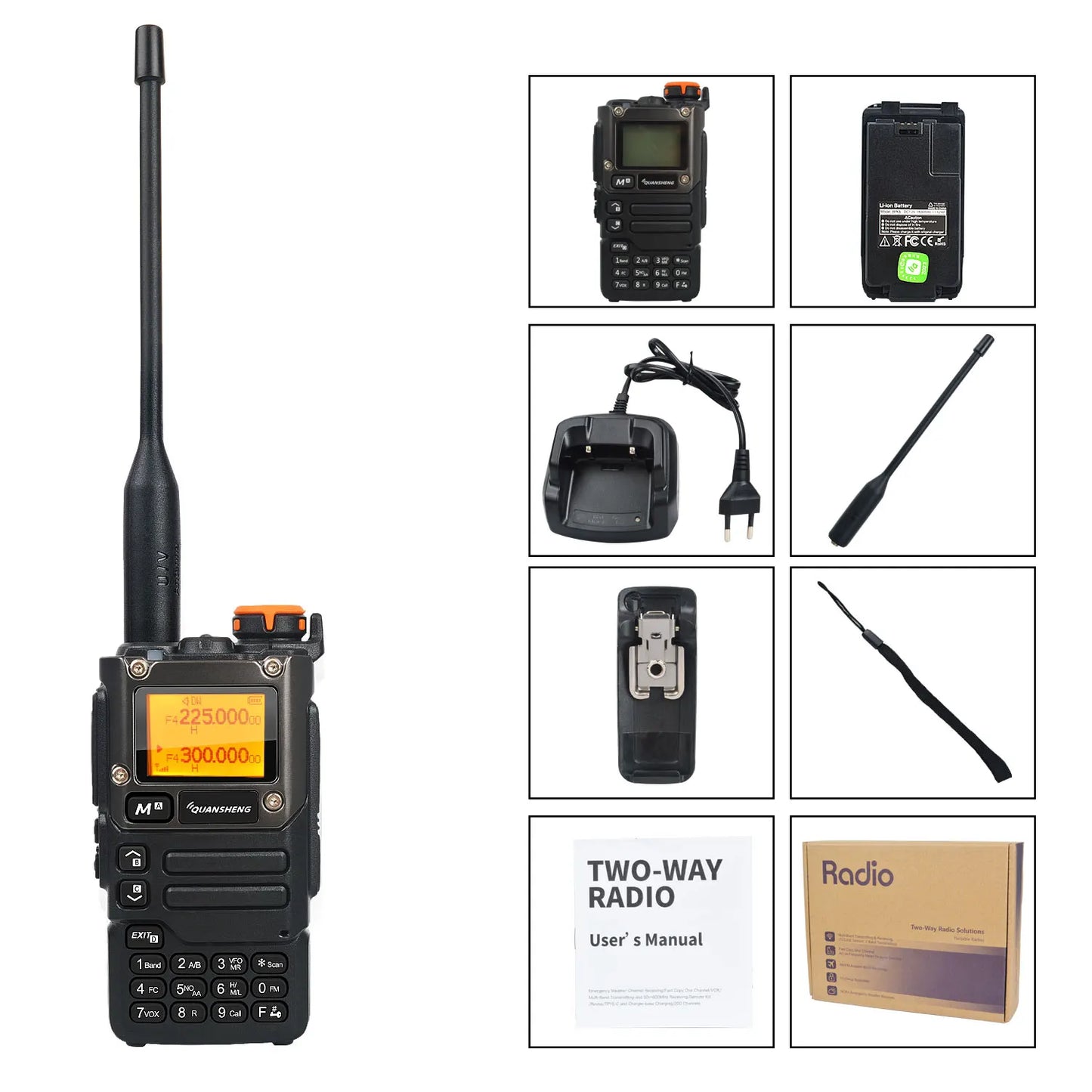

Package Contains:
1×UV-K5(8) Radio Body

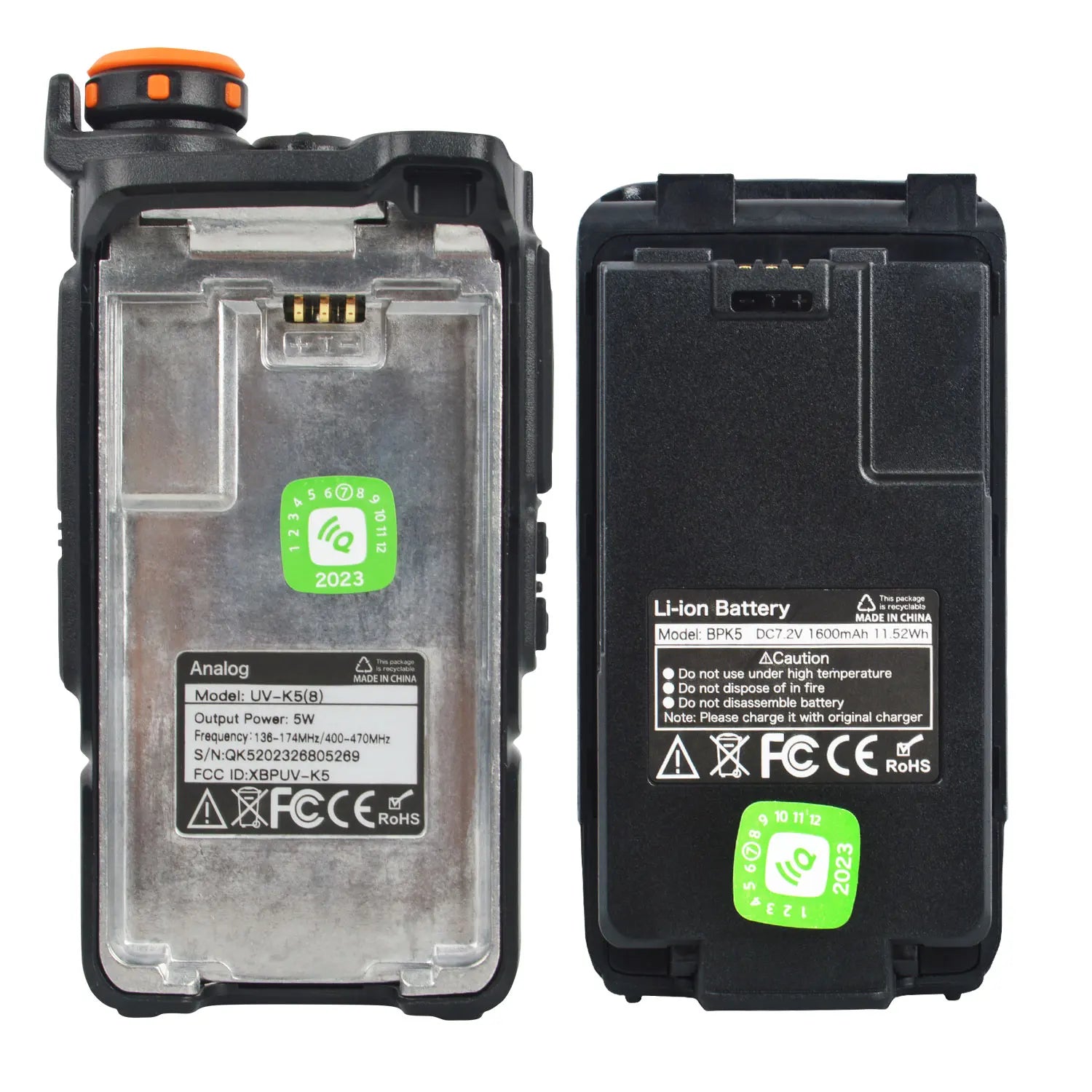

1× 7.2V 1600mah Li-ion Battery Pack BPK5
1× SMA-Female Dual Band Antenna

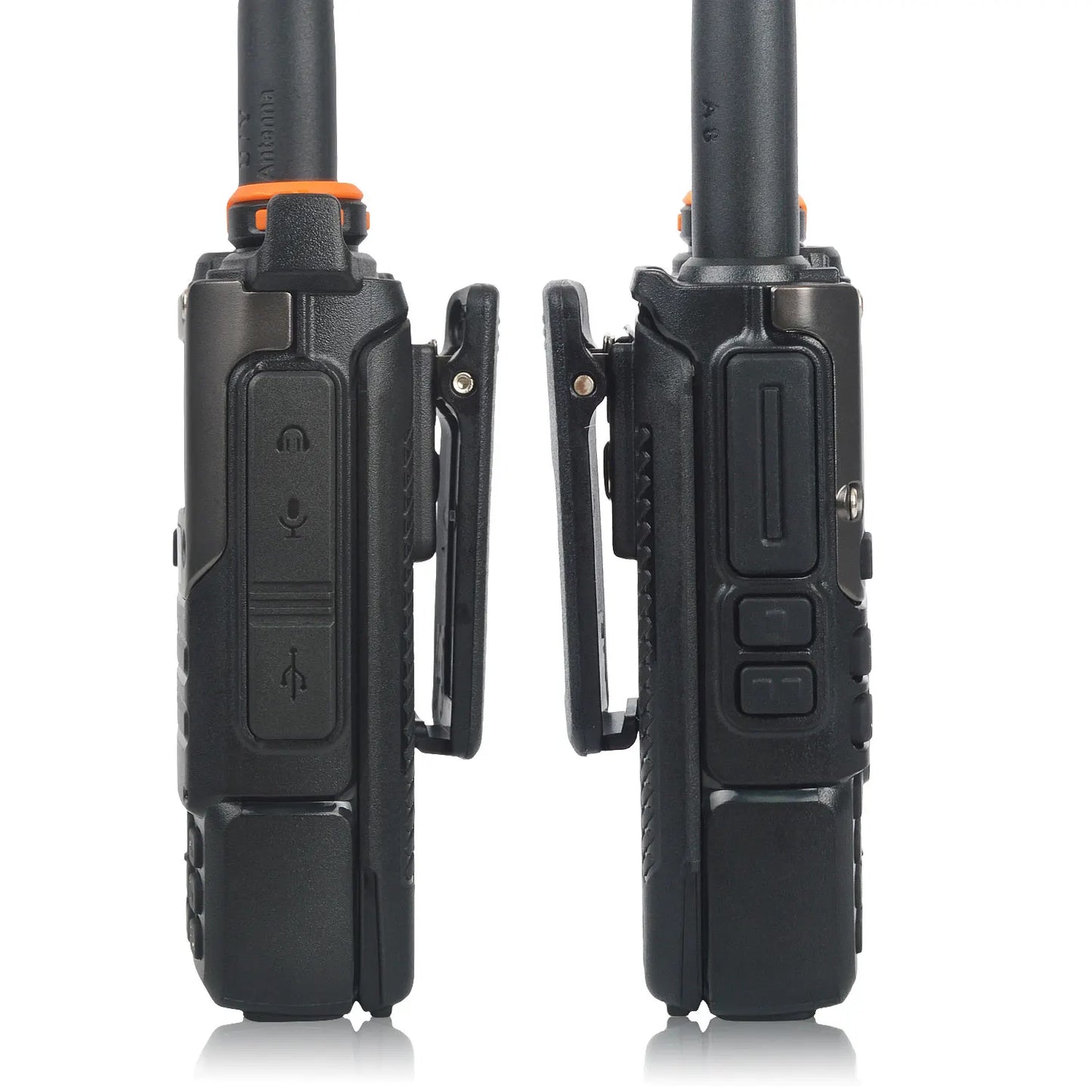

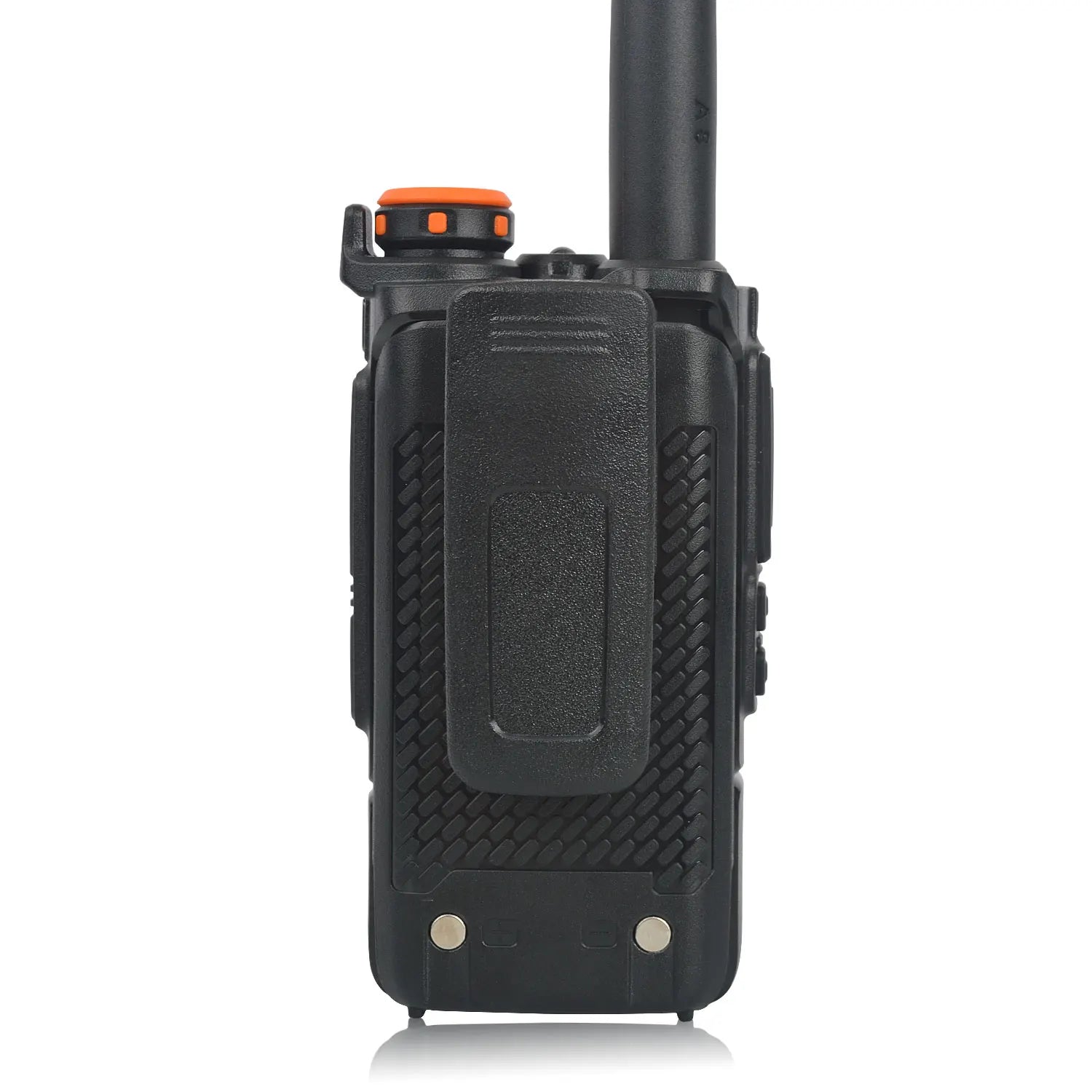

1× Belt Clip
1× ENG Manual
1× Desktop Charger ( 110V ~ 240V ) with Correct Adapter for your Country
1× Handstrap

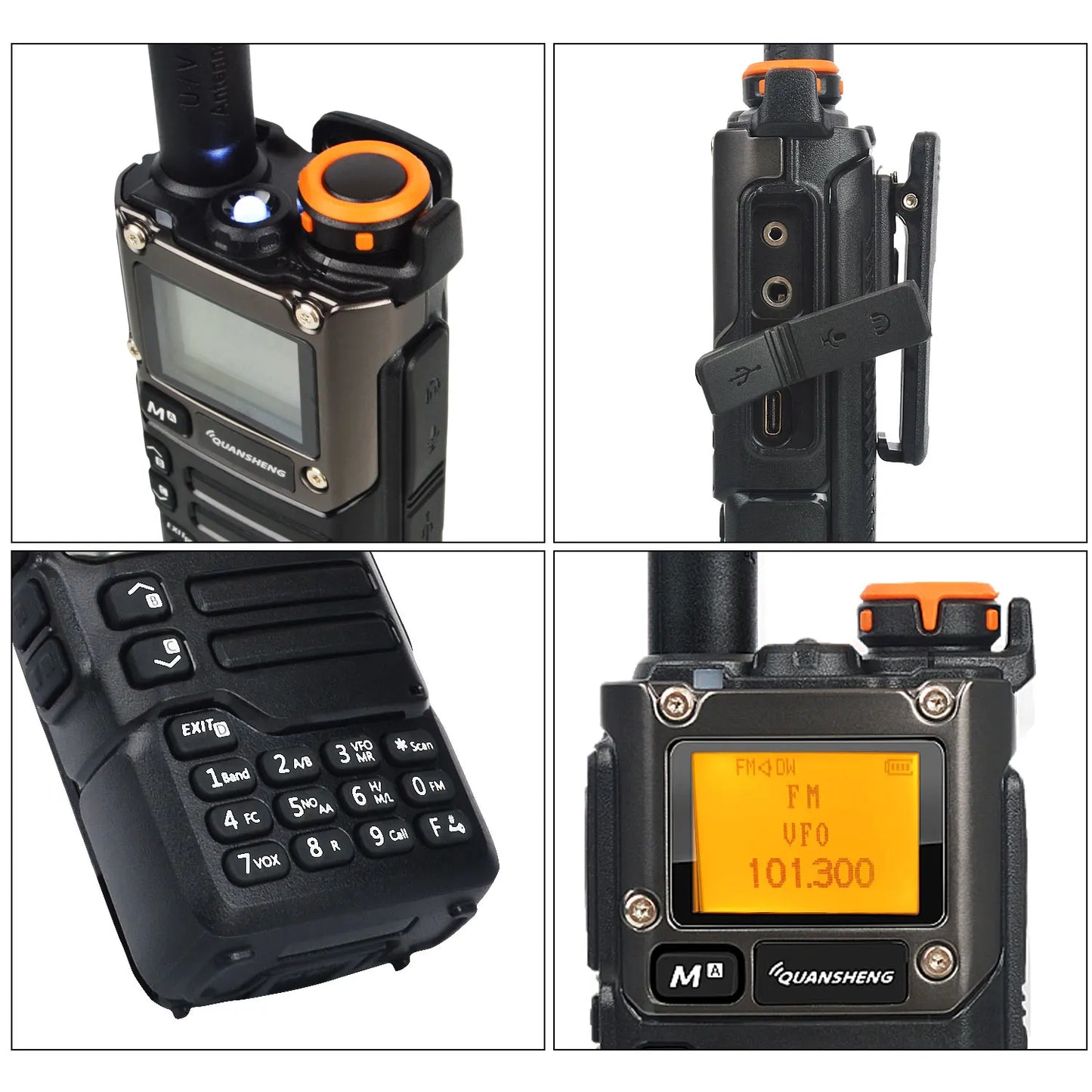

Photos:
